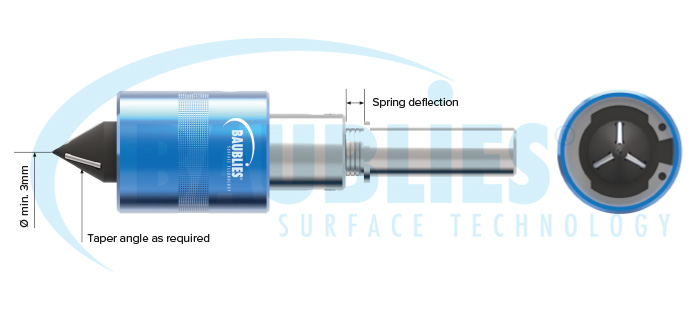

Roller burnishing tool for taper bores - IRG-K/from 4 mm dia.

Technical Data

Roller burnishing tool for taper bores - IRG-K-1

Machining

Taper bores

Diameter range

from 4 mm

Rollers

according to requirement

Standard mount

Cylinder shank (with clamping surface on request) or Morse taper

Optional tool equipment

VDI, HSK etc. mounts

Inside cooling

max. 8 bar coolant pressure

Use parameters to be used

(Please note that this information represents guide values which must be adapted to the individual cases.)

Workpiece oversize

0.01mm

Tool preclamping

4mm

Lubrication

Emulsion or oil; filtration of the lubricant (< 40 µm) can improve the surface quality and the tool life

Pre-machining of workpiece

Surface roughness up to 15 µm

Maximum hardness of workpiece

45HRC

Speed

up to 40 m/min; speeds are calculated from the circumferential speed, based on the largest dia.

Feed rate

0.1 - 0,3 mm/rev, Return traverse always in rapid traverse

Dwell time under pressure

5 - 20 rotations
