One-roller tools, modular system

Technical Data

One-roller tools, modular system

Machining

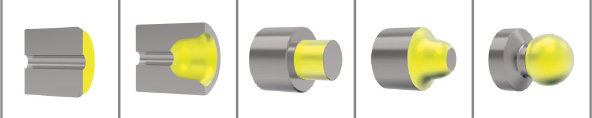

External machining shafts , contours, punctures ,plane surfaces

Standard mount

Square shank 20/25/32/40 mm

swivel range

Lockable steps - ± 90 ° in 15 °

radius role

R = 2 mm

Optional tool equipment

- VDI, HSK etc. mounts

- special roles

Use parameters to be used

(Please note that this information represents guide values which must be adapted to the individual cases.)

rolling speed

50-200m/min

Feed rate

0.05-0.3mm/rev

Workpiece oversize

0.01-0.02mm

Tool preclamping

0.05-0.5mm

Lubrication

Emulsion or oil; filtration of the lubricant (<40µm) can improve the surface quality and the tool life

Pre-machining of workpiece

Surface roughness up to 15 µm

Maximum hardness of workpiece

45HRC
